SHACKLES

COMMERCIAL SHACKLES - DEE SHACKLES

Commercially available shackles are made of mild steel, are ungalvanised and manufactured to Grade 3. Shackle in dee form with collar pin. Pin and bow share the same diameter.

Details

bow diameter	pin diameter	eye diameter	inside width	inside length	approx. weight per 100 pieces
a mm	b mm	c mm	d mm	e mm	in kg
5	5	10	10	19	1,47
6	6	12	12	25	2,56
8	8	16	16	32	6,06
10	10	20	20	38	11,8
11	11	22	22	44	15,8
12	12	24	24	51	20,5
14	14	28	28	53	32,5
16	16	32	32	64	48,5
20	20	40	40	76	94,7
22	22	44	44	89	126
25	25	50	50	100	185
28	28	56	56	115	260
32	32	64	64	127	388
38	38	76	76	152	650
45	45	90	90	180	1.080
50	50	100	100	200	1.480
57	57	114	114	220	2.192
65	65	130	130	247	3.252

bow diameter	pin diameter	eye diameter	inside width	inside length	approx. weight per 100 pieces
a mm	b mm	c mm	d mm	e mm	in kg
5	5	10	10	19	1,47
6	6	12	12	25	2,56
8	8	16	16	32	6,06
10	10	20	20	38	11,8
11	11	22	22	44	15,8
12	12	24	24	51	20,5
14	14	28	28	53	32,5
16	16	32	32	64	48,5
20	20	40	40	76	94,7
22	22	44	44	89	126
25	25	50	50	100	185
28	28	56	56	115	260
32	32	64	64	127	388
38	38	76	76	152	650
45	45	90	90	180	1.080
50	50	100	100	200	1.480
57	57	114	114	220	2.192
65	65	130	130	247	3.252

COMMERCIAL SHACKLES - BOW SHACKLES

Commercially available shackles are made of mild steel, are ungalvanised and manufactured to Grade 3. Shackle in bow form with collar pin. Pin and bow share the same diameter.

Details

bow diameter	pin diameter	eye diameter	inside width	inside length	bow length	approx. weight per 100 pieces
a mm	b mm	c mm	d mm	e mm	f mm	in kg
5	5	10	10	20	15	1,54
6	6	12	12	24	18	2,66
8	8	16	16	32	24	6,29
10	10	20	20	40	30	12,3
11	11	22	22	44	33	16,4
12	12	24	24	48	36	21,2
14	14	28	28	56	42	33,7
16	16	32	32	64	48	50,3
20	20	40	40	80	60	98,3
22	22	44	44	88	66	131
25	25	50	50	100	75	192
28	28	56	56	112	84	270
32	32	64	64	128	96	403
38	38	76	76	152	114	674
45	45	90	90	180	135	1.120
50	50	100	100	200	150	1.536
57	57	114	114	228	171	2.276
65	65	130	130	260	195	3.375

bow diameter	pin diameter	eye diameter	inside width	inside length	bow length	approx. weight per 100 pieces
a mm	b mm	c mm	d mm	e mm	f mm	in kg
5	5	10	10	20	15	1,54
6	6	12	12	24	18	2,66
8	8	16	16	32	24	6,29
10	10	20	20	40	30	12,3
11	11	22	22	44	33	16,4
12	12	24	24	48	36	21,2
14	14	28	28	56	42	33,7
16	16	32	32	64	48	50,3
20	20	40	40	80	60	98,3
22	22	44	44	88	66	131
25	25	50	50	100	75	192
28	28	56	56	112	84	270
32	32	64	64	128	96	403
38	38	76	76	152	114	674
45	45	90	90	180	135	1.120
50	50	100	100	200	150	1.536
57	57	114	114	228	171	2.276
65	65	130	130	260	195	3.375

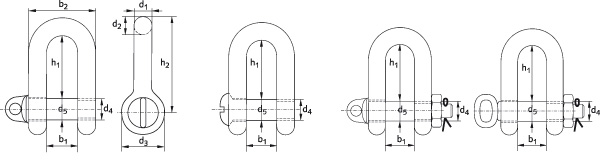

SHACKLES DIN 82101

The shackles are manufactured to a standard similar to DIN 82101. Available in: Type A with collar pin; Type B with slotted bolt; and Type C with safety bolt, nut and cotter pin.

Details

size type			swl	b1	b2	d1	d2	d3	d4	d5	h1	h2	weight per 100 pieces in kg ≈ Form
A	B	C	kn *)	mm	mm	mm	mm	mm		mm	mm	mm	A	B	C
0,06	—	—	0,6	6	13	3,5	4	8	M 4	4	12	18	0,007	—	—
0,1	—	—	1	7	15	4	5	10	M 5	5	15,5	23	0,013	—	—
0,16	—	—	1,6	8	18	5	6	12	M 6	6	18	27	0,024	—	—
0,25	—	—	2,5	11	25	7	8	16	M 8	8	24	36	0,045	—	—
0,4	1	—	4	14	30	8	10	20	M 10	10	30	45	0,090	0,085	—
0,6	1,6	—	6,3	17	37	10	12	24	M 12	12	36	54	0,17	0,16	—
1	1	1	10	21	47	13	15	32	M 16	16	49	72	0,36	0,35	0,40
1,6	1,6	1,6	16	27	61	17	19	40	M 20	20	61	90	0,75	0,73	0,81
2	2	2	20	30	68	19	21	44	M 22	22	67	99	1,00	0,97	1,08
2,5	2,5	2,5	25	33	75	21	23	48	M 24	24	73	108	1,32	1,28	1,42
3	3	3	31,5	38	86	24	26	54	M 27	27	83,5	123	1,8	1,7	2,03
4	4	4	40	42	96	27	29	60	M 30	30	91	135	2,4	2,3	2,7
5	5	5	50	47	107	30	33	72	M 36	36	111	162	3,9	3,7	4,4
6	6	6	63	53	121	34	37	78	M 39	39	119,5	176	5,3	5,1	5,9
8	8	8	80	60	136	38	41	90	M 45	45	139,5	203	7,9	7,6	8,5
10	10	10	100	66	150	42	45	96	M 48	48	147	216	10	9,7	10,8
12	12	12	125	73	167	47	50	104	M 52	52	158	234	13	12,9	14
16	16	16	160	81	185	52	55	120	M 60	60	185	270	18,5	18,1	19,3
20	20	20	200	90	206	58	61	136	M 68	68	211	306	27,2	26,8	28,2
—	—	25	250	100	226	63	67	144	M 72x6	72	221	324	—	—	35,5
—	—	32	315	110	250	70	74	160	M 80x6	80	246	360	—	—	49,5
—	—	40	400	125	283	79	84	180	M 90x6	90	276	405	—	—	69
—	—	50	500	140	316	88	93	200	M 100x6	100	307	450	—	—	93
—	—	63	630	155	347	96	101	220	M 110x6	110	339	459	—	—	125
—	—	80	800	175	395	110	115	250	M 125x6	125	385,5	563	—	—	180
—	—	100	1.000	200	450	125	130	280	M 140x6	140	430	630	—	—	260

size type			swl	b1	b2	d1	d2	d3	d4	d5	h1	h2	weight per 100 pieces in kg ≈ Form
A	B	C	kn *)	mm	mm	mm	mm	mm		mm	mm	mm	A	B	C
0,06	—	—	0,6	6	13	3,5	4	8	M 4	4	12	18	0,007	—	—
0,1	—	—	1	7	15	4	5	10	M 5	5	15,5	23	0,013	—	—
0,16	—	—	1,6	8	18	5	6	12	M 6	6	18	27	0,024	—	—
0,25	—	—	2,5	11	25	7	8	16	M 8	8	24	36	0,045	—	—
0,4	1	—	4	14	30	8	10	20	M 10	10	30	45	0,090	0,085	—
0,6	1,6	—	6,3	17	37	10	12	24	M 12	12	36	54	0,17	0,16	—
1	1	1	10	21	47	13	15	32	M 16	16	49	72	0,36	0,35	0,40
1,6	1,6	1,6	16	27	61	17	19	40	M 20	20	61	90	0,75	0,73	0,81
2	2	2	20	30	68	19	21	44	M 22	22	67	99	1,00	0,97	1,08
2,5	2,5	2,5	25	33	75	21	23	48	M 24	24	73	108	1,32	1,28	1,42
3	3	3	31,5	38	86	24	26	54	M 27	27	83,5	123	1,8	1,7	2,03
4	4	4	40	42	96	27	29	60	M 30	30	91	135	2,4	2,3	2,7
5	5	5	50	47	107	30	33	72	M 36	36	111	162	3,9	3,7	4,4
6	6	6	63	53	121	34	37	78	M 39	39	119,5	176	5,3	5,1	5,9
8	8	8	80	60	136	38	41	90	M 45	45	139,5	203	7,9	7,6	8,5
10	10	10	100	66	150	42	45	96	M 48	48	147	216	10	9,7	10,8
12	12	12	125	73	167	47	50	104	M 52	52	158	234	13	12,9	14
16	16	16	160	81	185	52	55	120	M 60	60	185	270	18,5	18,1	19,3
20	20	20	200	90	206	58	61	136	M 68	68	211	306	27,2	26,8	28,2
—	—	25	250	100	226	63	67	144	M 72x6	72	221	324	—	—	35,5
—	—	32	315	110	250	70	74	160	M 80x6	80	246	360	—	—	49,5
—	—	40	400	125	283	79	84	180	M 90x6	90	276	405	—	—	69
—	—	50	500	140	316	88	93	200	M 100x6	100	307	450	—	—	93
—	—	63	630	155	347	96	101	220	M 110x6	110	339	459	—	—	125
—	—	80	800	175	395	110	115	250	M 125x6	125	385,5	563	—	—	180
—	—	100	1.000	200	450	125	130	280	M 140x6	140	430	630	—	—	260

*) Umrechnung der Einheiten für Festigkeiten und Bruchkräfte nach DIN 1301 – 1 kp (Kilopond) = 9,80665 N (Newton)

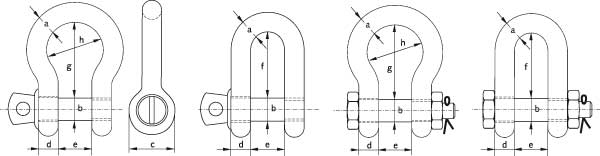

GREEN PIN® STANDARD SHACKLES

Green Pin® Standard shackles are made of high tensile steel, Grade 6, quenched and tempered. Available in: Type A bow shackle with collar pin; Type B dee shackle with collar pin; Type C bow shackle with safety bolt, nut and cotter pin; and Type D dee shackle with safety bolt, nut and cotter pin.

Details

The safety factor comprises 6x WLL to the minimum break load. Green Pin shackles are manufactured to EN 13889 and meet the performance requirements of US Fed. Spec. RR-C-271 Type IVB Class 3, Grade A. The surface is hot-dipped galvanised. Temperature range for deployment is -20°C to +200°C. On request, we can provide a work certificate, certificate of basic raw materials and/or an EC declaration of conformity, free of charge.

wll	bow Ø d	pin Ø d	eye Ø d	eye width	inside width	inside length dee form	inside length bow form	bow length	approx. weight per piece in kg
to	a mm	b mm	c mm	d mm	e mm	f mm	g mm	h mm	A + B	C + D
0,33	5	6	12,5	5	9,5	20	22	16	0,02	—
0,5	7	8	17	7	12	22	29	20	0,05	0,06
0,75	9	10	21	9	13,5	27	32	22	0,1	0,11
1	10	11	23	10	17	31	36,5	26	0,14	0,16
1,5	11	13	26	11	19	37	43	29	0,19	0,22
2	13,5	16	34	13,5	22	43	51	32	0,36	0,42
3,25	16	19	40	16	27	51	64	43	0,63	0,74
4,75	19	22	47	19	31	59	76	51	1,01	1,18
6,5	22	25	53	22	36	73	83	58	1,5	1,77
8,5	25	28	60	25	43	85	95	68	2,21	2,58
9,5	28	32	67	28	47	90	108	75	3,16	3,66
12	32	35	74	32	51	94	115	83	4,31	4,91
13,5	35	38	80	35	57	115	133	92	5,55	6,54
17	38	42	89	38	60	127	146	99	7,43	8,19
25	45	50	104	45	74	149	178	126	12,84	14,22
35	50	57	119	50	83	171	197	138	18,15	19,85
42,5	57	65	134	57	95	190	222	160	26,29	28,33
55	65	70	145	65	105	203	260	180	37,6	39,59
85	75	83	163	75	127	229	329	190	—	62

wll	bow Ø d	pin Ø d	eye Ø d	eye width	inside width	inside length dee form	inside length bow form	bow length	approx. weight per piece in kg
to	a mm	b mm	c mm	d mm	e mm	f mm	g mm	h mm	A + B	C + D
0,33	5	6	12,5	5	9,5	20	22	16	0,02	—
0,5	7	8	17	7	12	22	29	20	0,05	0,06
0,75	9	10	21	9	13,5	27	32	22	0,1	0,11
1	10	11	23	10	17	31	36,5	26	0,14	0,16
1,5	11	13	26	11	19	37	43	29	0,19	0,22
2	13,5	16	34	13,5	22	43	51	32	0,36	0,42
3,25	16	19	40	16	27	51	64	43	0,63	0,74
4,75	19	22	47	19	31	59	76	51	1,01	1,18
6,5	22	25	53	22	36	73	83	58	1,5	1,77
8,5	25	28	60	25	43	85	95	68	2,21	2,58
9,5	28	32	67	28	47	90	108	75	3,16	3,66
12	32	35	74	32	51	94	115	83	4,31	4,91
13,5	35	38	80	35	57	115	133	92	5,55	6,54
17	38	42	89	38	60	127	146	99	7,43	8,19
25	45	50	104	45	74	149	178	126	12,84	14,22
35	50	57	119	50	83	171	197	138	18,15	19,85
42,5	57	65	134	57	95	190	222	160	26,29	28,33
55	65	70	145	65	105	203	260	180	37,6	39,59
85	75	83	163	75	127	229	329	190	—	62

GREEN PIN® HEAVY DUTY SHACKLES

Green Pin® Heavy Duty shackles are made of alloy steel, Grade 8 quenched and tempered. Available in bow form, with safety bolt, nut and cotter pin. The safety factor comprises 5x WLL to the minimum break load.

Details

The surface finish of the bow is painted silver, the pin painted green – with the exception of the 120t WLL shackle, which is entirely hot-dipped galvanised. On request, we can provide a work certificate, certificate of basic raw materials and/or an EU declaration of conformity, free of charge. All shackles with a WLL of 150t or above come with a Lloyd’s Register of Shipping test load certificate.

wll	bow Ø d	pin Ø d	eyes Ø d	eye width	inside width	inside length	bow length	outside length	pin- length	outside width	width nut	weight per piece
in tons	a mm	b mm	c mm	d mm	e mm	f mm	g mm	h mm	i mm	j mm	k mm	in kg
120	95	95	215	89	144	381	238	667	440	416	50	110
150	105	108	245	100	165	400	275	702	490	485	60	160
200	120	130	288	110	175	500	290	854	520	530	60	235
250	130	140	308	115	200	540	305	921	560	565	65	285
300	140	150	335	120	200	600	305	1.018	575	585	70	340
400	170	175	387	160	225	650	325	1.137	680	665	70	560
500	180	185	410	160	250	700	350	1.213	710	710	70	685
600	200	205	458	185	275	700	375	1.267	810	775	70	880
700	210	215	468	200	300	700	400	1.287	850	820	70	980
800	210	220	478	200	300	700	400	1.294	870	820	70	1.100
900	220	230	500	210	320	700	420	1.320	920	860	70	1.280
1.000	240	240	530	210	340	700	420	1.360	940	900	70	1.460
1.250	260	270	600	220	360	700	450	1.430	1.020	970	70	1.990
1.500	280	290	640	220	360	700	450	1.480	1.060	1.010	70	2.400

wll	bow Ø d	pin Ø d	eyes Ø d	eye width	inside width	inside length	bow length	outside length	pin- length	outside width	width nut	weight per piece
in tons	a mm	b mm	c mm	d mm	e mm	f mm	g mm	h mm	i mm	j mm	k mm	in kg
120	95	95	215	89	144	381	238	667	440	416	50	110
150	105	108	245	100	165	400	275	702	490	485	60	160
200	120	130	288	110	175	500	290	854	520	530	60	235
250	130	140	308	115	200	540	305	921	560	565	65	285
300	140	150	335	120	200	600	305	1.018	575	585	70	340
400	170	175	387	160	225	650	325	1.137	680	665	70	560
500	180	185	410	160	250	700	350	1.213	710	710	70	685
600	200	205	458	185	275	700	375	1.267	810	775	70	880
700	210	215	468	200	300	700	400	1.287	850	820	70	980
800	210	220	478	200	300	700	400	1.294	870	820	70	1.100
900	220	230	500	210	320	700	420	1.320	920	860	70	1.280
1.000	240	240	530	210	340	700	420	1.360	940	900	70	1.460
1.250	260	270	600	220	360	700	450	1.430	1.020	970	70	1.990
1.500	280	290	640	220	360	700	450	1.480	1.060	1.010	70	2.400

GREEN PIN® WIDE MOUTH TOWING SHACKLES

Green Pin® Wide Mouth Towing shackles are made of alloy steel, Grade 8 quenched and tempered. Available in bow form, with safety bolt, nut and cotter pin. The safety factor comprises 4x WLL to the minimum break load.

Details

SUPER GREEN PIN® SHACKLES

Super Green Pin® shackles are made of alloy steel, Grade 8 quenched and tempered. Available in bow form, with safety bolt, nut and cotter pin. The safety factor comprises 5x WLL to the minimum break load.

Details

The shackles meet the performance requirements of US Fed. Spec. RR-C-271 Type IVB Class 3, Grade A. The surface is hot-dipped galvanised. On request, we can provide a work certificate, certificate of basic raw materials and/or an EC declaration of conformity, free of charge. All shackles with a WLL of 140t or above come with a Lloyd’s Register of Shipping test load certificate.

wll	bow Ø d	pin Ø d	eye Ø d	eye width	inside width	inside length	bow length	outside length	pin length	outside width	width nut	weight per piece
in tons	a mm	b mm	c mm	d mm	e mm	f mm	g mm	h mm	i mm	j mm	k mm	in kg
3,3	13,5	16	34	13,5	22	51	32	91	81	63	11	0,44
5	16	19	40	16	27	64	43	114	99	79	17	0,79
7	19	22	47	19	31	76	51	136	115	94	20	1,26
9,5	22	25	53	22	36	83	58	157	131	107	23	1,88
12,5	25	28	60	25	43	95	68	176	151	124	25	2,78
15	28	32	67	28	47	108	75	197	167	137	28	3,87
18	32	35	74	32	51	115	83	218	179	154	31	5,26
21	35	38	80	35	57	133	92	240	198	170	34	6,94
30	38	42	89	38	60	146	99	262	203	183	19	8,79
40	45	50	104	45	74	178	126	314	244	226	24	15
55	57	57	133	50	83	197	138	365	269	264	27	22
85	70	70	159	65	105	260	180	468	330	339	33	42
120	83	83	171	75	127	330	190	564	399	371	40	70
150*	95	95	215	89	144	381	238	667	440	416	50	112
175*	105	108	245	100	165	400	275	702	490	485	60	160

wll	bow Ø d	pin Ø d	eye Ø d	eye width	inside width	inside length	bow length	outside length	pin length	outside width	width nut	weight per piece
in tons	a mm	b mm	c mm	d mm	e mm	f mm	g mm	h mm	i mm	j mm	k mm	in kg
3,3	13,5	16	34	13,5	22	51	32	91	81	63	11	0,44
5	16	19	40	16	27	64	43	114	99	79	17	0,79
7	19	22	47	19	31	76	51	136	115	94	20	1,26
9,5	22	25	53	22	36	83	58	157	131	107	23	1,88
12,5	25	28	60	25	43	95	68	176	151	124	25	2,78
15	28	32	67	28	47	108	75	197	167	137	28	3,87
18	32	35	74	32	51	115	83	218	179	154	31	5,26
21	35	38	80	35	57	133	92	240	198	170	34	6,94
30	38	42	89	38	60	146	99	262	203	183	19	8,79
40	45	50	104	45	74	178	126	314	244	226	24	15
55	57	57	133	50	83	197	138	365	269	264	27	22
85	70	70	159	65	105	260	180	468	330	339	33	42
120	83	83	171	75	127	330	190	564	399	371	40	70
150*	95	95	215	89	144	381	238	667	440	416	50	112
175*	105	108	245	100	165	400	275	702	490	485	60	160

*=Ringkopfbolzen

GREEN PIN® SLING SHACKLES

Green Pin® Sling shackles are made of alloy steel, Grade 8 quenched and tempered. Available in bow form, with safety bolt, nut and cotter pin. The safety factor comprises 6x WLL to the minimum break load.

Details

The surface finish of the bow is painted silver, the pin painted. On request, we can provide a work certificate, certificate of basic raw materials, manufacturer test certificate and/or an EC declaration of conformity, free of charge. All shackles come with a Lloyd’s Register of Shipping test load certificate, an MPI (magnet particle inspection) certificate and a US (ultrasound) inspection certificate.

wll	bow Ø d	pin Ø d	eye Ø d	eye width	inside width	inside length	bow length	outside length	pin length	outside width	width nut	bow thickness top	weight per piece
in tons	a mm	b mm	c mm	d mm	e mm	f mm	g mm	h mm	i mm	j mm	k mm	l mm	in kg
55	60	57	115	55	95	250	160	396	304	270	45	100	50
75	70	70	140	70	105	290	186	467	359	345	54	120	67
125	85	80	155	85	130	365	220	569	428	410	64	150	110
150	94	95	180	89	140	390	250	627	441	455	50	170	166
200	110	105	200	100	150	480	276	744	474	508	50	205	220
250	126	120	228	110	170	540	300	842	528	600	60	240	320
300	135	134	245	122	185	600	350	926	594	620	70	265	350
400	160	160	295	145	220	575	370	964	686	715	80	320	635
500	170	180	330	160	250	680	450	1.107	763	810	90	340	803
600	190	200	350	170	275	740	490	1.207	828	913	100	370	980
700	200	215	392	190	300	750	540	1.257	878	993	100	400	1.260
800	215	230	420	200	325	850	554	1.359	959	986	110	420	1.430
900	242	255	466	220	350	850	584	1.454	1.040	1.050	120	440	1.650
1.000	260	270	490	240	380	855	614	1.497	1.116	1.176	120	460	2.120
1.250	285	300	510	260	430	930	650	1.620	1.193	1.275	150	530	2.400
1.500	295	320	550	280	460	950	680	1.710	1.278	1.350	160	560	2.980

wll	bow Ø d	pin Ø d	eye Ø d	eye width	inside width	inside length	bow length	outside length	pin length	outside width	width nut	bow thickness top	weight per piece
in tons	a mm	b mm	c mm	d mm	e mm	f mm	g mm	h mm	i mm	j mm	k mm	l mm	in kg
55	60	57	115	55	95	250	160	396	304	270	45	100	50
75	70	70	140	70	105	290	186	467	359	345	54	120	67
125	85	80	155	85	130	365	220	569	428	410	64	150	110
150	94	95	180	89	140	390	250	627	441	455	50	170	166
200	110	105	200	100	150	480	276	744	474	508	50	205	220
250	126	120	228	110	170	540	300	842	528	600	60	240	320
300	135	134	245	122	185	600	350	926	594	620	70	265	350
400	160	160	295	145	220	575	370	964	686	715	80	320	635
500	170	180	330	160	250	680	450	1.107	763	810	90	340	803
600	190	200	350	170	275	740	490	1.207	828	913	100	370	980
700	200	215	392	190	300	750	540	1.257	878	993	100	400	1.260
800	215	230	420	200	325	850	554	1.359	959	986	110	420	1.430
900	242	255	466	220	350	850	584	1.454	1.040	1.050	120	440	1.650
1.000	260	270	490	240	380	855	614	1.497	1.116	1.176	120	460	2.120
1.250	285	300	510	260	430	930	650	1.620	1.193	1.275	150	530	2.400
1.500	295	320	550	280	460	950	680	1.710	1.278	1.350	160	560	2.980

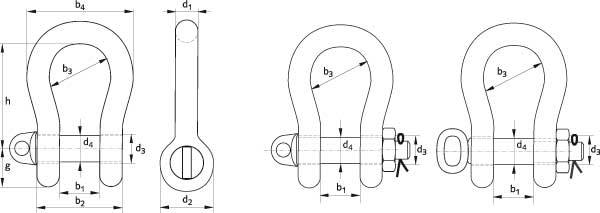

SHACKLES DIN 82016

These shackles are manufactured in accordance with DIN 82016.

Details

size	swl	b1	b2	b3	b4	d1	d2	thread d3	d4	g	h	weight per piece in kg type
	t	mm	mm	mm	mm	mm	mm		mm	mm	mm	A	B
8	8	60	136	93	169	38	90	M 45	45	54	175	8,44	9,28
10	10	66	150	102	186	42	96	M 48	48	60	190	11	12
12	12,5	73	167	114	208	47	104	M 52	52	67	210	14,5	15,7
16	16	81	185	128	232	52	120	M 60	60	76	240	19,7	21
20	20	90	206	140	256	58	136	M 68	68	85	265	29,6	31,4
25	25	100	226	155	281	63	144	M 72x6	72	92	290	37,4	39,4
32	31,5	110	250	175	315	70	160	M 80x6	80	100	325	51,6	53,3
40	40	125	283	195	353	79	180	M 90x6	90	107	360	72,6	75,3
50	50	140	316	220	396	88	200	M 100x6	100	120	410	101	105
63	63	155	347	245	437	96	220	M 110x6	110	135	450	132	137
80	80	175	395	275	495	110	250	M 125x6	125	150	510	195	200
100	100	200	450	305	555	125	280	M 140x6	140	165	570	290	300

size	swl	b1	b2	b3	b4	d1	d2	thread d3	d4	g	h	weight per piece in kg type
	t	mm	mm	mm	mm	mm	mm		mm	mm	mm	A	B
8	8	60	136	93	169	38	90	M 45	45	54	175	8,44	9,28
10	10	66	150	102	186	42	96	M 48	48	60	190	11	12
12	12,5	73	167	114	208	47	104	M 52	52	67	210	14,5	15,7
16	16	81	185	128	232	52	120	M 60	60	76	240	19,7	21
20	20	90	206	140	256	58	136	M 68	68	85	265	29,6	31,4
25	25	100	226	155	281	63	144	M 72x6	72	92	290	37,4	39,4
32	31,5	110	250	175	315	70	160	M 80x6	80	100	325	51,6	53,3
40	40	125	283	195	353	79	180	M 90x6	90	107	360	72,6	75,3
50	50	140	316	220	396	88	200	M 100x6	100	120	410	101	105
63	63	155	347	245	437	96	220	M 110x6	110	135	450	132	137
80	80	175	395	275	495	110	250	M 125x6	125	150	510	195	200
100	100	200	450	305	555	125	280	M 140x6	140	165	570	290	300

STAINLESS STEEL SHACKLES

Shackles made of high tensile stainless steel 1.4542. Constructed in a dee (straight) form similar to DIN 82101, available in: Type A with eye bolt; Type B with bolt and cross slot bolt; and Type C with long bolt and pin hole. The high tensile stainless steel shackles are also available in a bow form.

Details

d1 mm	d2 mm	d3 mm	Bi mm	Li mm	brl kg	swl tested
10	8	19	16	32	7.000	1.000
12,7	10	25	20	40	10.000	2.000
16	12,7	32	25	50	15.000	3.000
19	16	37	32	64	25.000	5.000
22,2	19	44	38	76	35.000	7.000
25,4	22,2	51	44	88	45.000	9.000
28,6	25,4	57	51	102	55.000	11.000
31,8	28,6	64	57	114	65.000	13.000
34,9	31,8	70	64	128	75.000	15.000
38	34,9	76	70	140	90.000	18.000

d1 mm	d2 mm	d3 mm	Bi mm	Li mm	brl kg	swl tested
10	8	19	16	32	7.000	1.000
12,7	10	25	20	40	10.000	2.000
16	12,7	32	25	50	15.000	3.000
19	16	37	32	64	25.000	5.000
22,2	19	44	38	76	35.000	7.000
25,4	22,2	51	44	88	45.000	9.000
28,6	25,4	57	51	102	55.000	11.000
31,8	28,6	64	57	114	65.000	13.000
34,9	31,8	70	64	128	75.000	15.000
38	34,9	76	70	140	90.000	18.000

CUSTOMISED SHACKLES TAILORED TO YOUR NEEDS

We manufacture shackles according to your every wish no matter the material and sizes you require.

Details Details

Contact us – it is our pleasure to advise you.

info@tecklenborg-kegel.de

Tel: +49 (0)4 71 / 9 31 83 - 0
Fax: +49 (0)4 71 / 7 63 27

No products found.
