RIGGING SCREWS
RIGGING SCREWS JAW-JAW
The rigging screws are made of rustproof stainless steel (material
AISI 316). Both ends are equipped with jaws. Surfaces feature a
polished finish.
-
Details
Details

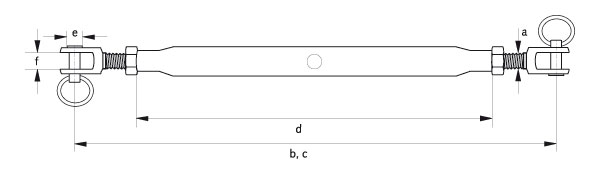

wire rope diameter thread diameter body length overall length pin diameter inside jaw width breaking load mm a
mmb
mmc
mmd
mme
mmin kg 2,5 M 5 155 220 5 6,5 1.000 3 M 6 185 255 6 7 1.300 4 M 8 205 305 8 10 2.500 5 M 10 235 360 8 12 3.500 6 M 12 290 420 12 14 5.800 7 M 14 310 435 12,7 14 7.500 8 M 16 355 500 12,7 16 9.500 10 M 20 415 580 15,5 20 12.500 wire rope diameter thread diameter body length overall length pin diameter inside jaw width breaking load mm a
mmb
mmc
mmd
mme
mmin kg 2,5 M 5 155 220 5 6,5 1.000 3 M 6 185 255 6 7 1.300 4 M 8 205 305 8 10 2.500 5 M 10 235 360 8 12 3.500 6 M 12 290 420 12 14 5.800 7 M 14 310 435 12,7 14 7.500 8 M 16 355 500 12,7 16 9.500 10 M 20 415 580 15,5 20 12.500 Dimensions and technical data subject to change.
RIGGING SCREWS JAW-TERMINAL
The rigging screws are made of rustproof stainless steel (material
AISI 316). One ends is equipped with a jaw, the other with a
terminal. Surfaces feature a polished finish.
-
Details
Details
wire rope diameter thread diameter body length overall length pin diameter inside jaw width breaking load mm a
mmb
mmc
mmd
mme
mmin kg 2,5 M 5 155 220 5 6,5 1.000 3 M 6 185 255 6 7 1.300 4 M 8 205 305 8 10 2.500 5 M 10 235 360 8 12 3.500 6 M 12 290 420 12 14 5.800 7 M 14 310 435 12,7 14 7.500 8 M 16 355 500 12,7 16 9.500 10 M 20 415 580 15,5 20 12.500 wire rope diameter thread diameter body length overall length pin diameter inside jaw width breaking load mm a
mmb
mmc
mmd
mme
mmin kg 2,5 M 5 155 220 5 6,5 1.000 3 M 6 185 255 6 7 1.300 4 M 8 205 305 8 10 2.500 5 M 10 235 360 8 12 3.500 6 M 12 290 420 12 14 5.800 7 M 14 310 435 12,7 14 7.500 8 M 16 355 500 12,7 16 9.500 10 M 20 415 580 15,5 20 12.500 Dimensions and technical data subject to change.
