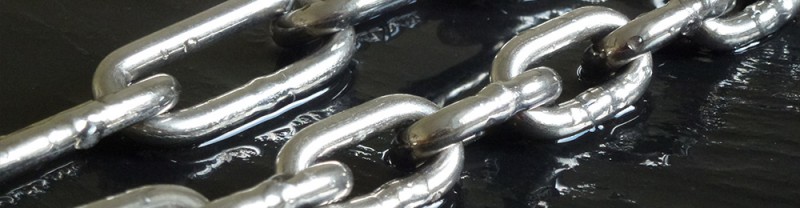

STAINLESS STEEL CHAINS
Non-rusting and weather-resistant stainless-steel chains for a wide variety of tasks in the professional sector! All of our chains can be assembled according to your wishes, so that your desired product is exactly tailored to your requirements. We offer short-and long-pitch stainless-steel chains in different lengths and of different fracture loads.
Not suitable for carrying or lifting loads!
SHORT LINK CHAIN
- Material: 1.4401
- Norm: similar to DIN 766
| material diameter | inner length | outer width | minimum breaking load | weight per metre |
|---|---|---|---|---|
|
a mm |
b mm |
c mm |
in kg | in kg |
| 3 (DIN 5685) | 16 | 11 | 280 | 0,17 |
| 4 | 16 | 14 | 800 | 0,32 |
| 5 | 18,5 | 17 | 1.250 | 0,5 |
| 6 | 18,5 | 20 | 1.600 | 0,75 |
| 8 | 24 | 26 | 3.200 | 1,35 |
| 10 | 28 | 34 | 5.000 | 2,25 |
LONG LINK CHAIN
- Material: 1.4401
- Norm: similar to DIN 763
| material diameter | inner length | outer width | minimum breaking load | weight per metre |
|---|---|---|---|---|
|
a mm |
b mm |
c mm |
in kg | in kg |
| 3 (DIN 5685) | 26 | 12 | 280 | 0,14 |
| 4 | 32 | 16 | 600 | 0,27 |
| 5 | 35 | 20 | 1.000 | 0,43 |
| 6 | 42 | 24 | 1.250 | 0,63 |
| 8 | 52 | 32 | 2.500 | 1,1 |
| 10 | 65 | 40 | 4.000 | 1,75 |
Dimensions and technical data subject to change.
